Chapter3：指令：计算机的语言

2.3 Operands of the computer hardware

Arthmetic instructions operands must be registers or immediate。

  • 32 registers in RISC-V
  • 64-bit wide registers in RISC-V

Note

smaller is faster(寄存器越少越快，一般不超过32个)

For registers in RISC-V, size is 64 bits, which named doublewords。

e.g. Compiling a complex C assignment

f = (g + h) - (i + j)

RISC-V assembly code

add t0, g, h
add t1, i, j
sub f, t0, t1
Memory Operands

Advantages + can save more data + save complex data structures e.g.array and structures

Data transfer instructions + load : from memory to register。 ld: load doubleword + store : from register to memory。 sd: store doubleword

Memory access and contents at those locations

big endian + the high bytes are stored at lower memory addresses + the low bytes are stored at higher memory addresses + Power PC

little endian + the low bytes are stored at lower memory addresses + the high bytes are stored at higher memory addresses + RISC-V

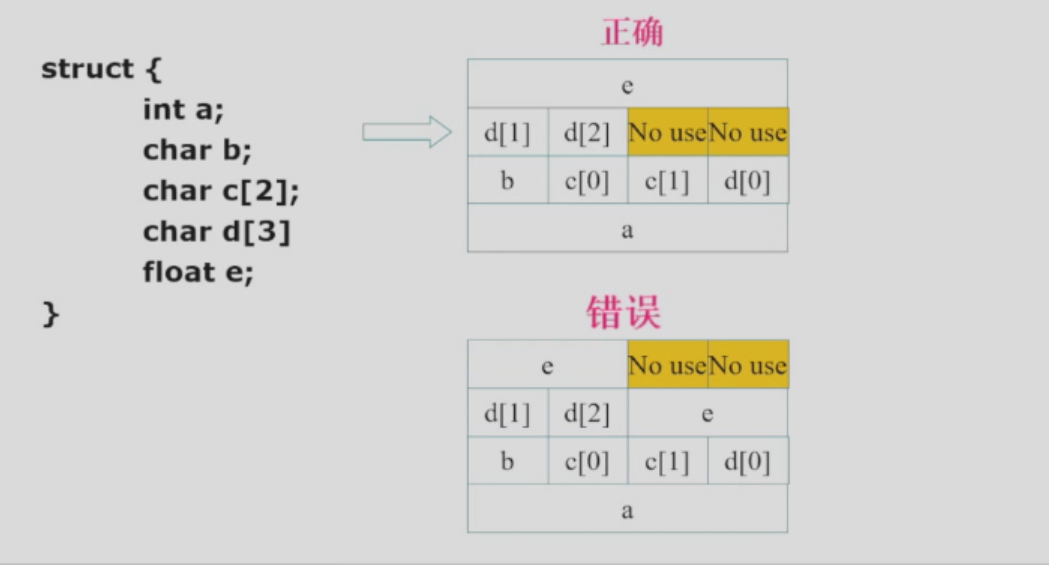

Memory Alignment

alt text

因为一次只能读出四字节内存的一行，这样分布不能将float e一次性全部读出。

e.g. compiling with an operand in memory C code

C code : g = h + A[8] A base address: x22 g address: x20 h address: x21

RISC-V assembly code:

ld x9 , 64(x22)
add x20, x21, x22

more complex code : A[12] = A[8] + h

ld x9, 64(x22)
add x9, x21, x9
sd x9, 96(x22)

constant and immediate operands

How to represent constant e.g g = h + 55

  • constant in memory 基于内存的操作数 load the constant from memory to a register, then use the register as the operand. e.g. suppose constantaddr is the address of the constant 55 assembly ld x9, constantaddr(x3) add g, h, x9

  • immediate operand 立即数操作数 conbine the constant with the instruction。

  • avoid the load instuction
  • offer version of the instruction e.g. addi g, h, 55 add 55 because of the instruction 功能测试程序生成常数方式非常累赘，可以用此方法替代，前提是要初始化。 小的操作数比较常见，可以考虑启用这一方法。 constant 0: a register x0

2.4 signed and unsigned numbers

Unsigned binary integers

x = xn-12n-1 + xn-22n-2 + ... + x121 + x020

range: 0 to + 2n - 1 using 64 bits 0 to 264 - 1(18,446,744,073,709,551,615)

2's complement signed integers

x = -xn-12n-1 + xn-22n-2 + ... + x121 + x020

range: - 2n-1 to + 2n-1 - 1

-(-2n-1) can not be represented

signed negation

complement and add 1。

x + x̄ = 11111...1112 = -1

so we have x̄ + 1 = -x

sign extension

for positive numbers, sign extension is the same as zero extension。

for negative numbers, sign extension is the same as one extension。

e.g. 8-bit -> 16-bit

+2: 00000010 -> 00000000_00000010

-2: 11111110 -> 11111111_11111110

in RISC-V, we use :

lb: sign-extend loaded bytes lbu: zero-extend loaded bytes

2.5 Representing instruction in the computer

mapping register to numbers: map x0 to x31 onto number 1 to 31

tanslating assembly into machine instructione。

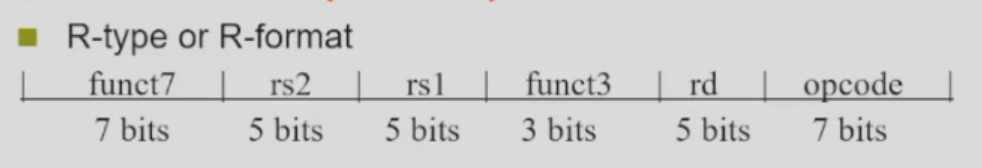

R-format

alt text

e.g. add, sub

opcode: base operation and format of an instruction

rd: the register destination operand

funct3: an additional opcode field e.g. 我们可以把加减法之类的做成同一个opcode，然后通过funct3来区分是加法还是减法。

rs1: the first register source operand

rs2: the second register source operand

funct7: an additional opcode field

Note

All instructions have the same length in RISC-V(32 bits)。

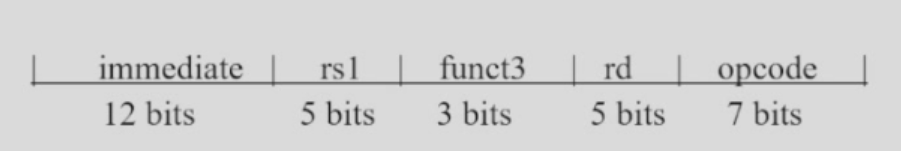

I-format

e.g. addi, load

alt text

  • rs1: source or base register address register number

  • immediate: constant operand or offset added to the base address

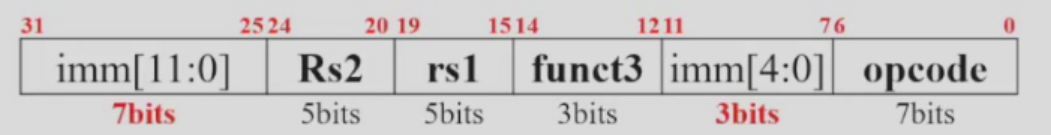

S-format

alt text

  • rs1: base address register number

  • rs2: source operand register number

  • immediate: offset added to base address

  • split so that rs1 and rs2 always in the same field

e.g.all

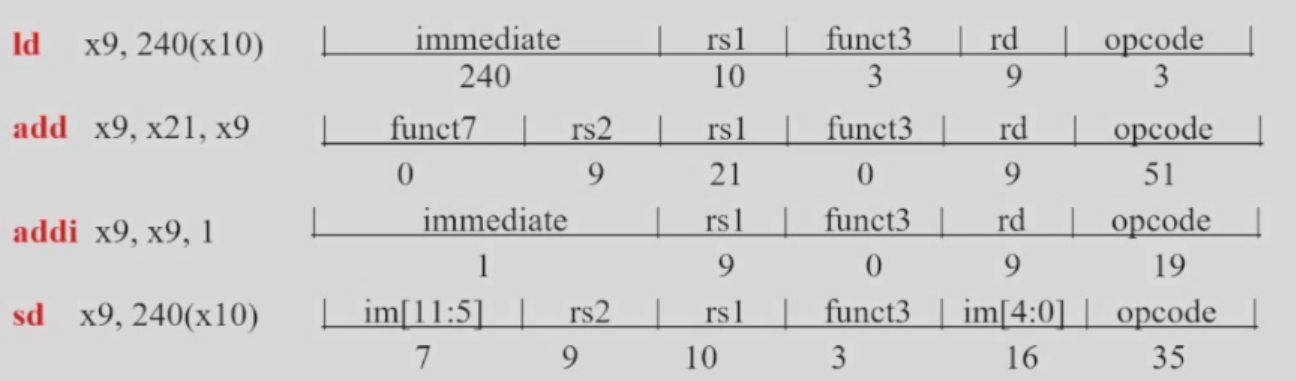

A[30] = h + A[30] + 1

(assume h: x21, base addr of A: x10)

ld x9, 240(x10)   // temporary register x9 gets A[30]
add x9, x21, x9   // temporary register x9 gets h + A[30]
addi x9, x9, 1    // temporary register x9 gets h + A[30] + 1
sd x9, 240(x10)   // store the result back to A[30]

alt text

2.6 Logical Operations

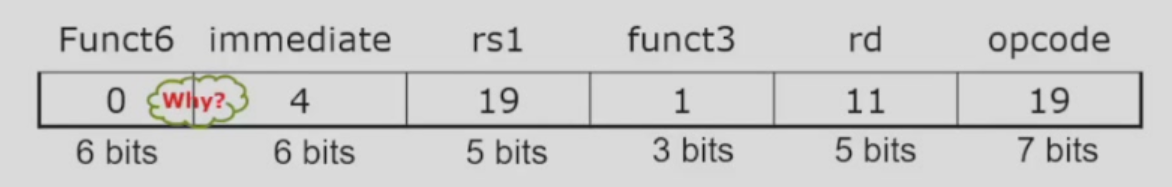

Shift Operator

shift left by n bits: 2n * x

属于I型指令

alt text

funct6为六位的原因：移位不需要这么多立即数，只要六位 (26=64) 即可

e.g

slli x11, x19 , 4 // reg x11 = reg x19 << 4

OR and XOR

2.7 instructions for making decisions

branch instruction

  • beq : go to the branch if equal

  • bne : go to the branch if not equal

store的立即数是作为数据的地址，而beq的立即数是用于运算的地址(意即加到PC上的数字)，因此二者指令类型不同。

code:if (i==j) f = g + h; else f = g - h;

     bne x22, x23, ELSE  // go to the ELSE branch since i != j
     add x19, x20, x21
     beq x0, x0, EXIT // EXIT
ELSE:sub x19, x20, x21
EXIT:

pro :code:while(save[i]!=k) i+=1 assume i, k->x22,x24 base of save->x25

LOOP:slli x10, x22, 3 // reg x10 = i * 8
     add x25, x25, x10 // reg x25 = base of save + i * 8
     ld x9, 0(x10) // load save[i] into reg x9
     bne x9, x24, EXIT // if save[i] == k, go to EXIT
     addi x22, x22, 1 // i += 1
     beq x0, x0, LOOP // go back to the beginning of the loop, 0 = 0必定跳转
EXIT:

blt : branch if less than bge : branch if greater than(include ==) slt : R型指令。set on less than slt: x2, x3, x4 x2=1 if x3 < x4

signed and unsigned : blt&bltu bge&bgeu slt&sltu

e.g.

x22 = 11111....11 x23 = 00000....01

slt: x22 < x23 (-1 < 1) sltu: x22 > x23 (4????... > 1)

slti & sltiu: immediate

Bounds check Shortcut

reduce an index-out-of-bounds check + if (x20 >= x11 | x20 < 0) goto INDEXOUTOFBOUNDS

RISC-V version :

bgeu x20, x11, INDEXOUTOFBOUNDS // excellent way:use negative in unsign numbers to avoid codes to examine "x20 < 0"

Basic Block

a basic block is a sequence of instructions with

  • no embedded branches(except at end)
  • no branches targets(except at beginning)
Case and Switch

assume f ~ k----x20 ~ x25 x5 contains 4

code:

switch(k) {
    case 0: f = i + j;  break;
    case 1: f = g + h;  break;
    case 2: f = g - h;  break;
    case 3: f = i - j;  break;
}

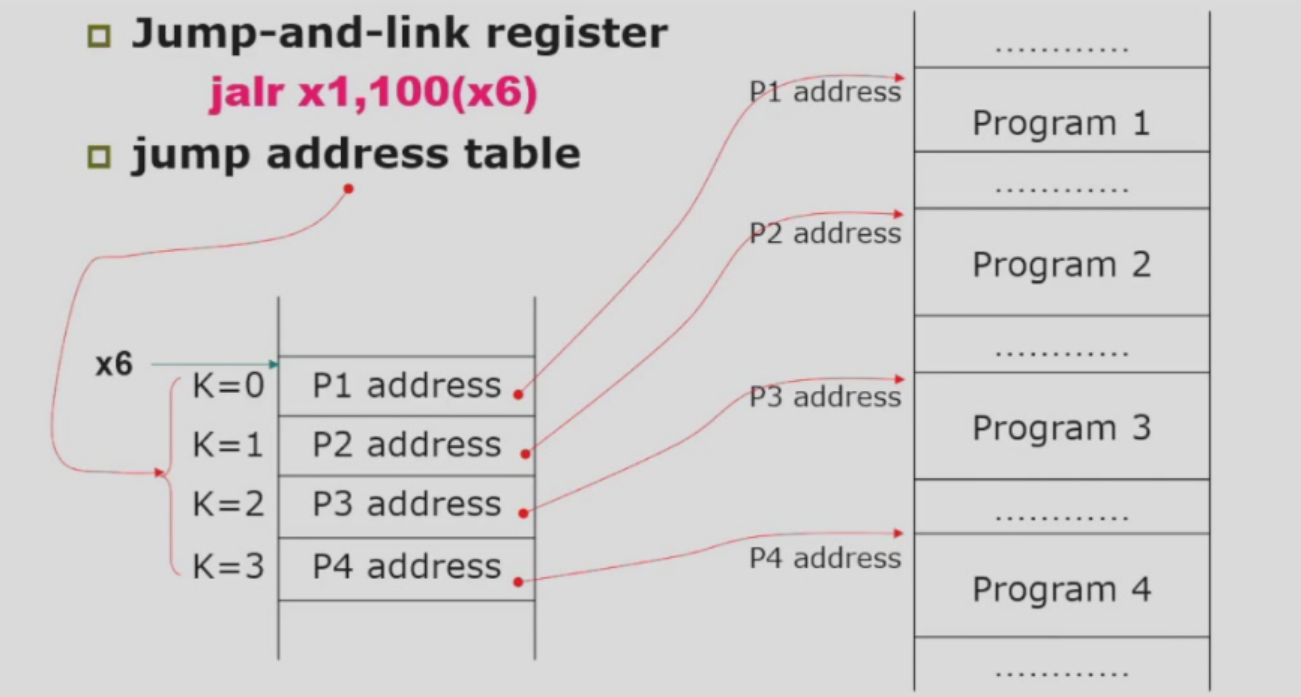

jump-and-link register : jalr

alt text

x6 refers to the jump address table

RISC-V code:

    blt x25, x0, EXIT // if k < 0, go to EXIT
    bge x25, x5, EXIT // if k >= 4, go to EXIT
    slli x7, x25, 3  // reg x7 = k * 8
    add x7, x7, x6  // reg x6 = base of jump address table + k * 8
    ld x7, 0(x7)    // load the jump address into reg x7
    jalr x0, x7     // jump to the jump address
EXIT:

jalr为I型指令。

2.8 Supporting Procedures in Computer hardware

Procedures : 过程 function : 函数

a stored subroutine that performs a specific task based on the parameters with which it is provided

six steps:

  1. place parameters in a place where the procedure can access them(in register x10~x17)
  2. transfer control to the procedure
  3. acquire the storage resources needed for the procedure
  4. perform the desired task
  5. place the result value in a place where the calling program can access it
  6. return control to the point of origin(address in x1)

procedure call: jump and link

jal x1, PROCEDURE_NAME

  • address of the following instruction put in x1，待会就从这里跳回来。
  • jump to PROCEDURE_NAME

procedure return: jump and link register

jalr x0, 0(x1)

  • like jal, but jumps to 0 + address in x1
  • use x0 as rd (x0 cannot be changed)
  • can also be used for computer jumps e.g. case/switch

Note

不好理解这两位？ jal:跳转到固定的标签或地址。这是一个相对跳转，即跳转到程序中明确指定的某个位置。 jalr:跳转到存储在寄存器中的地址，而不是固定的标签。它是一个间接跳转，目标地址可以动态变化，因此更加灵活。

Using more register

Register using for procedure call:

  • x10~x17(a0-a7) are used to pass parameters or return values.x10(a0) is used to return values
  • x1: one return address register to return to origin point 返回地址寄存器

Stack: Ideal data structure for spilling registers

  • push, pop
  • Stack pointer: x2

Stack grow from higher address to lower address

  • Push: sp = sp - 8
  • Pop: sp = sp + 8

8: RISC-V架构为64位寄存器，每个寄存器占用8个字节。

a simple leaf procedure example:

c code:

long long int leaf_example(long long int g, long long int h, long long int i, long long int j) {
    long long int f;
    f = g + h - (i + j);
    return f;
}

assume:

  • agruments g-j are in x10-x13
  • f in x20
  • temporary registers x5 x6
  • need to save x5, x6, x20 on stack

RISC-V code:

  addi sp, sp, -24 // ask for 24 bytes of stack space
  sd x5, 16(sp)    // save x5 on stack
  sd x6, 8(sp)     // save x6 on stack
  sd x20, 0(sp)    // save x20 on stack
  add x5, x10, x11 // x5 = g + h
  add x6, x12, x13 // x6 = i + j
  sub x20, x5, x6  // x20 = f = g + h - (i + j)
  addi x10, x20, 0 // return value in x10
  ld x20, 0(sp)    // restore x20 from stack 从栈中恢复三者的值
  ld x6, 8(sp)     // restore x6 from stack
  ld x5, 16(sp)    // restore x5 from stack
  addi sp, sp, 24  // release stack space
  jalr x0, 0(x1)   // return to caller

x5-x7 x28-x31 : temporary registers

  • not preserved by the callee

x8-x9 x18-x27 : save registers

  • if used, the callee use and restore them

Note

临时寄存器：被调用的函数(callee)可以自由地修改这些寄存器的值，而不需要在函数结束时恢复它们的原始值。调用者(caller)在使用这些寄存器之前，应该自行负责保存它们的值(如果需要)。

保存寄存器：被调用的函数(callee)在开始执行之前，应该保存这些寄存器的值，并在函数结束时恢复它们的原始值。这样，调用者(caller)在调用函数之后，可以安全地使用这些寄存器，而不必担心它们的值被修改。

No-leaf procedures
  • call other procedures
  • for nested call, caller need to save on the stack:
  • return address
  • any arguments and temporaries needed after the call
  • restore from the stack after the call

e.g.

c code:

long long fact(long long n) {
    if (n < 1) {
        return 1;
    } else {
        return n * fact(n - 1);
    }
}

assume n as well as the result in x10

fact: addi sp, sp, -16 // ask for 16 bytes of stack space
      sd x1, 8(sp)    // save return address
      sd x10, 0(sp)   // save argument n
      addi x5, x10, -1 // x5 = n - 1
      bge x5, x0, L1 // if n >= 1, go to L1
      addi x10, x0, 1 // return 1
      jalr x0, 0(x1)  // return to caller
L1:   addi x10, x10, -1
      jal x1, fact    // call fact(n - 1)
      add x6, x10, x0
      ld x10, 0(sp)    // restore n
      ld x1, 8(sp)    // restore return address
      addi sp, sp, 16 // release stack space
      mul x10, x10, x6 // x10 = n * fact(n - 1)
      jalr x0, 0(x1)  // return to caller

x8: frame point register

x3: global pointer register

Local Data on the Stack
  • local data allocated by callee
  • C automatic variables
  • procedure frame(activation record) 过程帧(激活记录)
  • used by some compliers to manage stack storage
Memory Layout 内存布局
  • Text: program code
  • Static Data: global variables
  • static variable in C , constant arrays and strings
  • x3 initialized to address allowing +- offsets into this segment
  • Dynamic Data: heap
  • e.g. c: malloc; java: new
  • Stack: automatic storage

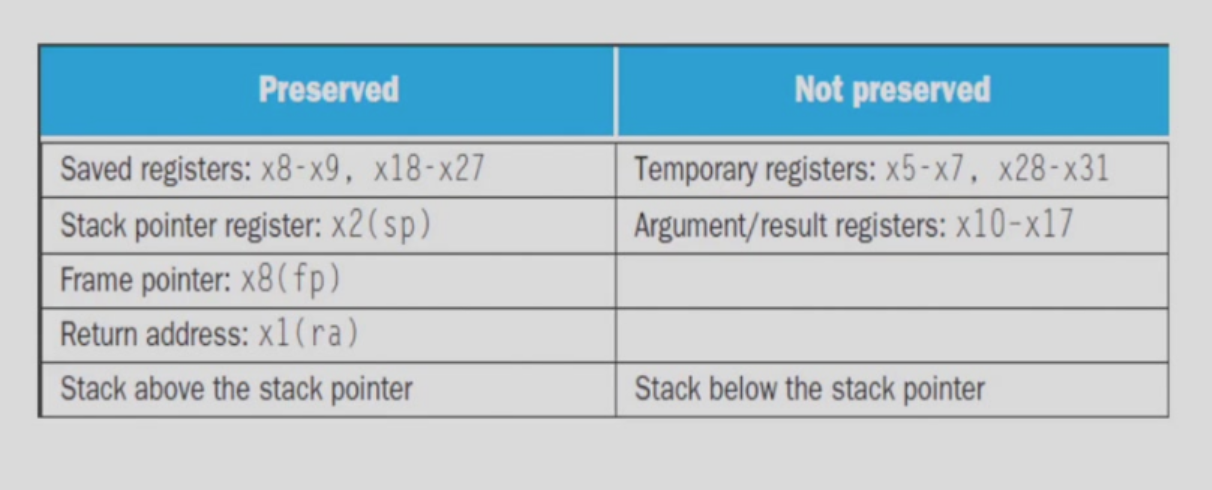

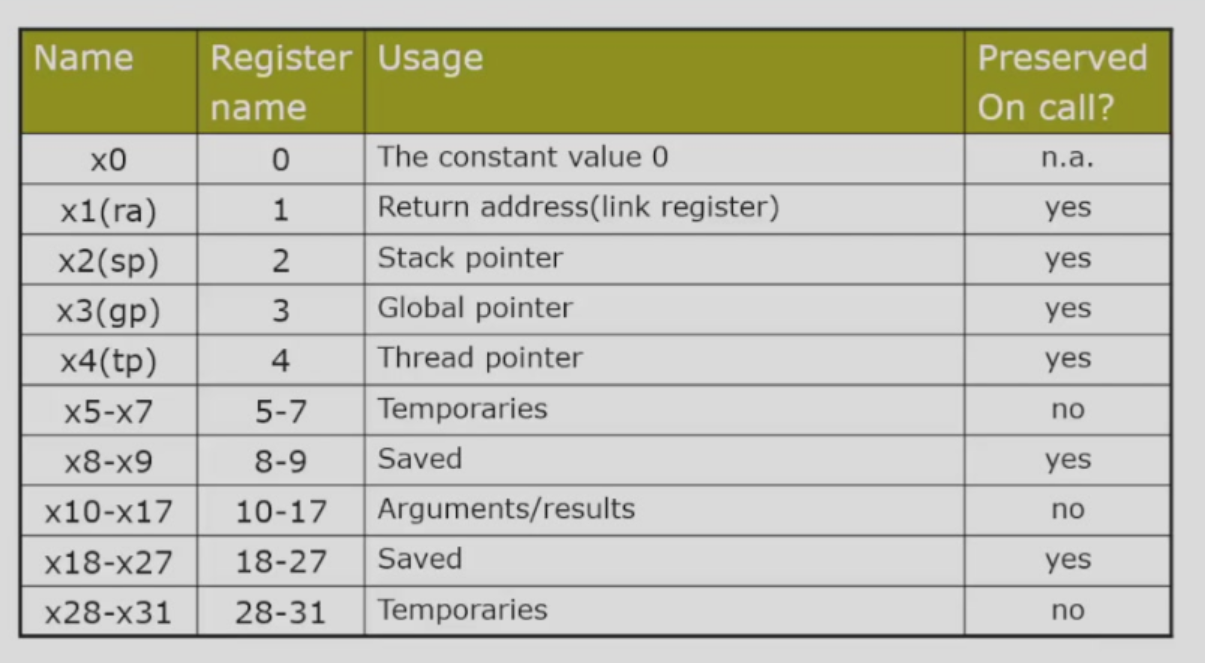

RISC-V register convention

alt text

alt text

2.9 communication with people

unicode: 16/32-bit code for characters

Bytes/Halfword/Word Operations
  • RISC-V byte/halfword/word load/store
  • load byte/halfword/word: sign extend to 64-bit in rd
    • lb rd, offset(rs1)
    • lh rd, offset(rs1)
    • lw rd, offset(rs1)
  • store byte/halfword/word
    • sb rs2, offset(rs1)
    • sh rs2, offset(rs1)
    • sw rs2, offset(rs1)
  • load/store unsigned byte/halfword/word (not sign extension but zero extension)
    • lbu rd, offset(rs1)
    • lhu rd, offset(rs1)
    • lwu rd, offset(rs1)
String
  • Three choice for representing a string
  • put the length of the string in the first position
  • an accompanying variable that stores the length
  • a character in the end position to mark the end of the string 结束字符

java : first choice c : last choice('\0')

e.g. the process of "strcpy"

c code:

void strcpy(char x[], char y[]) {
  int i = 0;
  while((x[i]=y[i])!='\0') i++;
}

i ~ x19 ; x's base addr ~ x10 ; y's base addr ~ x11

RISC-V code:

strcpy: addi sp, sp, -8 // ask for 8 bytes of stack space
        sd x10, 0(sp) // save x19
        add x19, x0, x0 // i = 0, x19->i
L1:     add x5, x19, x11 // address of y[i] in x5
        lbu x6, 0(x5) // x6 = y[i]
        add x7, x19, x10 // address of x[i] in x7
        sb x6, 0(x7) // x[i] = y[i]
        beq x6, x0, L2 // if y[i] == '\0', go to L2
        addi x19, x19, 1 // i++
        jal x0, L1 // go to L1
L2:     ld x10, 0(sp) // restore x19
        addi sp, sp, 8 // release stack space
        jalr x0, 0(x1) // return to caller

Optimization for example:

  • strcpy is a leaf procedure

  • allocate i into a temporary register e.g. x28

-- 避免了对栈的依赖，并且不需要额外的指令来保存和恢复x19。

For a leaf procedure

  • The complier exhausts all the temporary registers

  • then use the registers it must save

--> 优先使用临时寄存器

2.10 RISC-V Addressing for Wide Immediate and Addresses

  • Most constants are small, 12 bits is sufficient

  • For the occasional 32 bits constant:

lui rd, constant

alt text

  • copies 20-bit constant into the upper 20 bits of rd(imm[31:12])

  • extends bit 31 to imm[63:32] --> ensure the sign as the same

  • clears all lower 12-bit(imm[11:0]) to 0

我们最终想放入寄存器的值是 32 位常数 0x003D0. 先利用lui将高 20 位 976 放入寄存器中，随后利用加法指令加上 低 12 位，即 2304.
